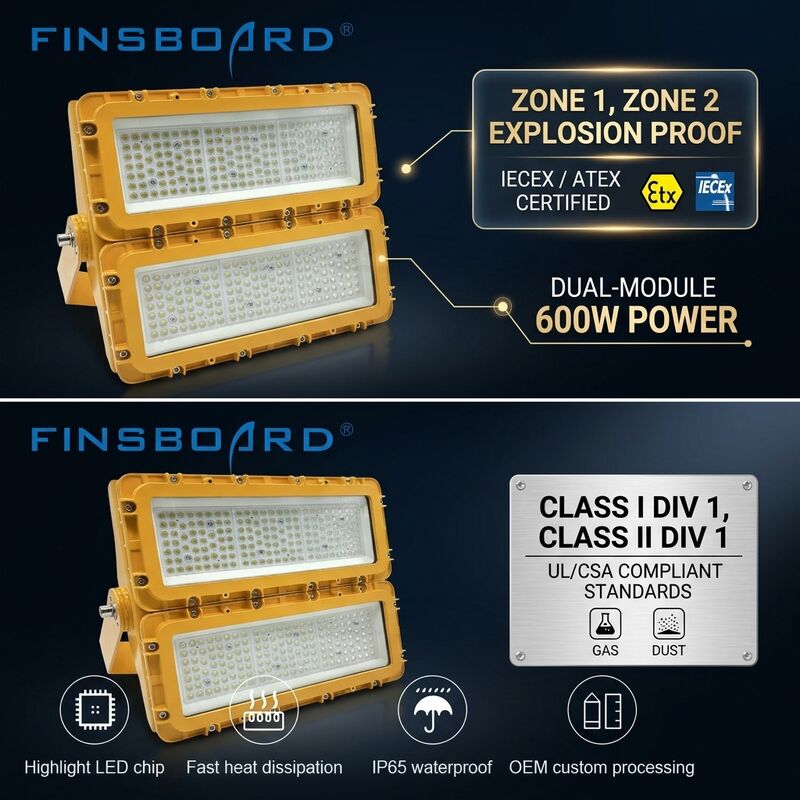

600W Explosion Proof LED Flood Light IECEx Marine Offshore 72000lm IP67
جزئیات محصول:
| محل منبع: | گوانگدونگ، چین |
| نام تجاری: | Fins board, BOCAQ |
| گواهی: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| شماره مدل: | EPFL-600W-MO |
پرداخت:
| مقدار حداقل تعداد سفارش: | 10 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | بسته جعبه + حباب یا به صورت سفارشی |
| زمان تحویل: | 10-15 روز یا تأیید |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 5000 عدد در ماه |
|
اطلاعات تکمیلی |
|||
| قدرت: | 600 وات | شار نورانی: | 72000lm |
|---|---|---|---|
| اثربخشی: | 120lm/w | دمای رنگ: | 4000K (سفید خنثی) |
| زاویه پرتو: | 90 درجه | ولتاژ ورودی: | AC 100-277V 50/60Hz |
| تراشه LED: | لومیلدز 3030 | رتبه بندی IP: | IP67 |
| مصالح مسکن: | آلیاژ آلومینیوم بدون مس با پوشش اپوکسی درجه دریایی | مواد لنز: | شیشه سکوریت 5 میلی متر |
| دمای عملیاتی: | -40 درجه سانتی گراد تا +55 درجه سانتی گراد | گزینه های نصب: | براکت قابل تنظیم، پایه دیواری، پایه سقفی |
| گواهی: | IECEx Ex d IIC T6 Gb | مقاومت در برابر پاشش نمک: | درجه دریایی C5-M (ISO 12944) |
| طول عمر: | ≥50000 ساعت L70 | گارانتی: | 5 سال |
| برجسته کردن: | 600W explosion proof LED flood light,marine offshore explosion proof lighting,IP67 rated explosion proof fixture |
||
توضیحات محصول
600W Explosion Proof LED Flood Light - IECEx Marine Offshore Hazardous Area Lighting
The EPFL-600W-MO is a purpose-built 600W explosion proof LED flood light engineered specifically for marine and offshore environments requiring IECEx certification. Featuring a copper-free aluminum alloy housing with marine-grade epoxy coating and IP67 submersion protection, this 72000lm floodlight withstands the most aggressive salt spray and corrosive atmospheres found in offshore oil & gas, shipyards, and coastal industrial facilities. A direct replacement for 2000W marine HPS floodlights with over 65% energy savings.
Key Features
- 600W High Power Output - 72000lm luminous flux with 120lm/W efficacy, replacing 2000W HPS/HID fixtures
- IECEx Certified - IECEx Ex d IIC T6 Gb for Zone 1 and Zone 2 hazardous areas
- Copper-Free Aluminum Housing - Marine-grade A356 aluminum alloy eliminates galvanic corrosion risk, coated with C5-M epoxy for ISO 12944 marine durability
- IP67 Submersion Protection - Fully sealed against temporary immersion, ideal for wave-swept decks and wash-down zones
- Lumileds 3030 LEDs - Industry-leading LED chips providing 4000K neutral white light with excellent color rendering
- 90° Focused Beam Angle - Optimized for targeted illumination of work zones, helidecks, and process areas on offshore installations
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with vessel and platform power distribution systems
- Versatile Mounting - Adjustable bracket, wall mount, and ceiling mount options for flexible installation on FPSOs, jack-ups, and semi-submersibles
- 5-Year Warranty - Supported by ≥50,000 hours L70 rated lifespan and rigorous factory testing
Applications
Engineered for IECEx Zone 1 and Zone 2 classified offshore and marine locations:
- Offshore oil and gas production platforms
- FPSO (Floating Production Storage and Offloading) vessels
- Drilling rigs and jack-up platforms
- LNG carrier and tanker deck lighting
- Shipyard construction and repair docks
- Coastal petrochemical terminals and jetties
- Port and harbor hazardous cargo handling areas
- Subsea equipment maintenance workshops
Technical Specifications
| Model Number | EPFL-600W-MO |
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Color Temperature | 4000K (Neutral White) |
| Beam Angle | 90° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Lumileds 3030 |
| IP Rating | IP67 |
| Housing Material | Copper-Free Aluminum Alloy A356 with C5-M Epoxy Coating |
| Lens | Tempered Glass 5mm |
| Salt Spray Resistance | C5-M Marine Grade (ISO 12944) |
| Operating Temperature | -40°C to +55°C |
| Mounting | Adjustable Bracket / Wall Mount / Ceiling Mount |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Marine-Grade Engineering
Unlike standard industrial floodlights, the EPFL-600W-MO is built from the ground up for marine duty. The copper-free A356 aluminum alloy housing eliminates the bimetallic corrosion risk common in salt-laden atmospheres, while the C5-M epoxy coating system provides long-term protection per ISO 12944-2 standards. Every unit passes a 1000-hour salt spray test (ASTM B117) before shipment, ensuring decades of reliable service in the world's most demanding offshore environments.
For product specifications, volume pricing, or technical support, please reach out to our marine lighting specialists.
