300W Explosion Proof LED Flood Light IECEx Arctic Grade -60°C Extreme Cold 36000lm IP66 Aluminum Lighting
جزئیات محصول:
| محل منبع: | گوانگدونگ، چین |
| نام تجاری: | Fins board, BOCAQ |
| گواهی: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| شماره مدل: | EPFL-300W-ARC |
پرداخت:
| مقدار حداقل تعداد سفارش: | 10 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | بسته جعبه + حباب یا به صورت سفارشی |
| زمان تحویل: | 10-15 روز یا تأیید |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 5000 عدد در ماه |
|
اطلاعات تکمیلی |
|||
| گواهی: | IECEx Ex d IIC T6 Gb | طول عمر: | ≥50000 ساعت L70 |
|---|---|---|---|
| گارانتی: | 5 سال | قدرت: | 300 وات |
| شار نورانی: | 36000 لیتر | اثربخشی: | 120lm/w |
| دمای رنگ: | 4000K (سفید خنثی) | زاویه پرتو: | 90 درجه |
| ولتاژ ورودی: | AC 100-277V 50/60Hz | تراشه LED: | Philip.s Lumileds 3030 |
| رتبه بندی IP: | IP66 | مصالح مسکن: | آلیاژ آلومینیوم بدون مس با پوشش درجه قطب شمال |
| مواد لنز: | شیشه سکوریت 5 میلی متر | دمای عملیاتی: | -60 تا +40 درجه سانتی گراد |
| برجسته کردن: | Arctic Explosion Proof Light,IECEx -60°C LED Floodlight,Extreme Cold Hazardous Lighting |
||
توضیحات محصول

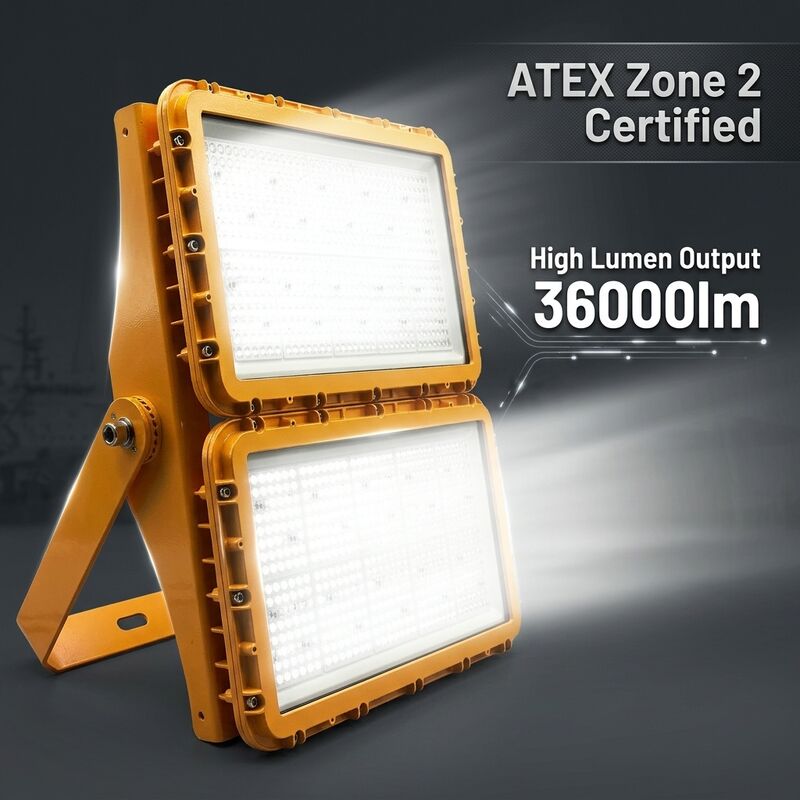

300W Explosion Proof LED Flood Light IECEx Arctic Grade -60°C Extreme Cold 36000lm IP66 Aluminum Lighting
300W Explosion Proof LED Flood Light - IECEx Ex d Hazardous Area Lighting
The EPFL-300W-ARC is a 300W explosion proof LED flood light engineered for demanding industrial environments. Delivering 36000lm luminous flux with 120lm/W efficacy, this focused 90° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 300W High Power Output - 36000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- IECEx Ex d Certified - IECEx Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Copper-Free Aluminum Alloy Housing - Copper-Free Aluminum Alloy with Arctic-Grade Coating with corrosion-resistant coating for long-term durability
- IP66 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Philip.s Lumileds 3030 LEDs - Premium LED chips delivering stable 4000K (Neutral White) light with excellent uniformity
- 90° Beam Angle - Focused beam for targeted work zone illumination for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Arctic-Grade Reliability - Certified cold-start at -60°C with integrated self-heating driver compartment, tested to IEC 60068-2-1 low temperature standards
- Low-Temperature Electronics - Militar.y-spec electronic components rated for extreme cold, with silicone-insulated internal wiring that remains flexible at sub-zero temperatures
Applications
Ideal for hazardous classified areas including:
- Arctic and subarctic oil and gas facilities, LNG liquefaction plants, cold storage
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-300W-ARC |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 36000lm |
| Efficacy | 120lm/W |
| Color Temperature | 4000K (Neutral White) |
| Beam Angle | 90° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Philip.s Lumileds 3030 |
| IP Rating | IP66 |
| Housing Material | Copper-Free Aluminum Alloy with Arctic-Grade Coating |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -60°C to +40°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
