600W LED Explosion Proof Flood Light 90° Wall Mount Exterior Perimeter ATEX IIB T6 RFEPL8280 Lighting
جزئیات محصول:
| محل منبع: | گوانگدونگ، چین |
| نام تجاری: | ECER |
| گواهی: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| شماره مدل: | RFEPL8280-600W-WL |
پرداخت:
| مقدار حداقل تعداد سفارش: | 10 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | بسته جعبه + حباب یا به صورت سفارشی |
| زمان تحویل: | 10-15 روز یا تأیید |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 5000 عدد در ماه |
|
اطلاعات تکمیلی |
|||
| قدرت: | 600 وات | بهره وری نور: | 100-120 لیتر/w |
|---|---|---|---|
| تراشه LED: | LUMILEDS SMD (LM-80) | زاویه پرتو: | 90 درجه |
| ولتاژ ورودی: | AC 100-277 ولت | رتبه بندی IP: | IP65 |
| CRI: | ≥80 | ضریب قدرت: | ≥0.95 |
| مواد: | آلومینیوم + شیشه سکوریت | علامت ضد انفجار: | Ex db mb IIB T6 - IP65 - WF2 |
| حفاظت در برابر صاعقه: | 6 کیلو ولت | گواهی: | ATEX, CE, ROHS, CCC |
| طول عمر: | 50000 ساعت | دمای عملیاتی: | -40 تا +60 درجه سانتی گراد |
| آزمایش افشاندن نمک: | 500 ساعت (فولاد ضد زنگ) | ||
| برجسته کردن: | 600W explosion proof LED flood light,ATEX IIB T6 certified LED lighting,wall mount exterior perimeter flood light |
||
توضیحات محصول
600W LED Explosion Proof Flood Light 90° Wall Mount
ATEX IIB T6 RFEPL8280 Series - Exterior Perimeter Lighting
The RFEPL8280-600W-WL is a 600W LED explosion proof flood light from the RFEPL8280 series, featuring wide 90° beam with wall mount configuration. Utilizing LUMILEDS SMD chip technology, it delivers 100-120lm/W efficiency with ATEX Ex db mb IIB T6 certification, IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6
- 90° Beam Configuration - Wide beam optimized for perimeter and wall-mounted applications
- 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring reliable 600W continuous operation
- 6KV Lightning Protection - Built-in surge protection for outdoor installations

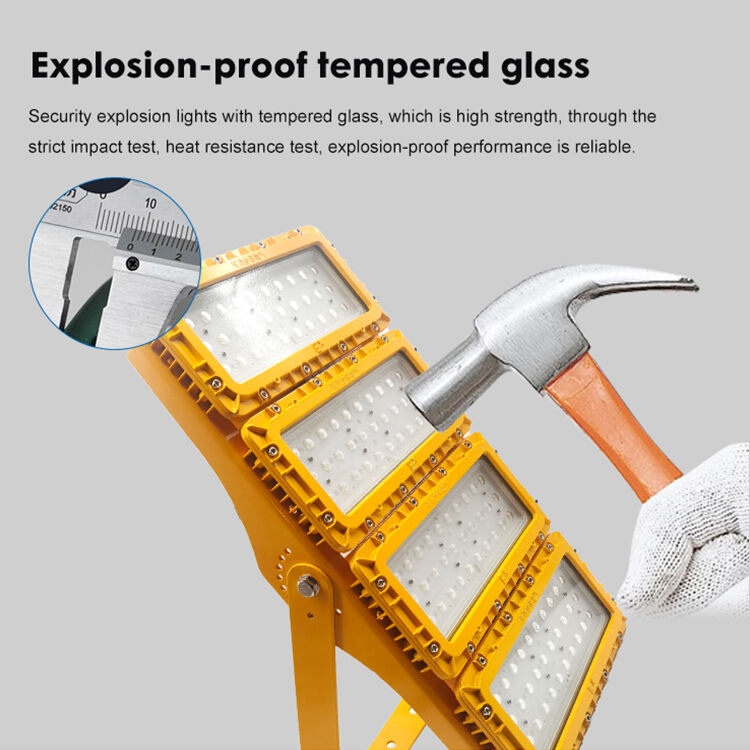

- High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
- All Stainless Steel Hardware - 500-hour salt spray certified fittings for corrosion resistance
- Wall-Mount Configuration - Purpose-designed for building exteriors and perimeter structures
- IP65 Waterproof WF2 - Fully sealed against dust, water jets, and corrosive environments
- Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical systems
6-in-1 Versatile Mounting
Ceiling Mount
Boom Mount
Bracket Mount
Wall Mount
Flange Mount
Guardrail Mount
Applications
Engineered for building exterior walls, storage facility perimeters, and industrial boundary lighting in classified zones:
Oil extraction, refining and petrochemical processing
Offshore platforms, FPSOs and drilling rigs
Chemical storage, mixing and processing facilities
Electric power generation and distribution stations
Military and defense hazardous installations
Combustible dust environments (Zone 21, Zone 22)
Emergency and normal lighting in classified areas
Technical Specifications
| Model Number | RFEPL8280-600W-WL |
| Item No. | RFEPL8280 |
| Power | 600W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 90° |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and multiple beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
