600W LED Explosion Proof Flood Light 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66 Die-Cast Aluminum ADC12
جزئیات محصول:
| محل منبع: | گوانگدونگ، چین |
| نام تجاری: | ECER |
| گواهی: | IECEx Ex d IIC T6 Gb, ISO 9001:2015 |
| شماره مدل: | EPFL-600W-HLD |
پرداخت:
| مقدار حداقل تعداد سفارش: | 10 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | بسته جعبه + حباب یا به صورت سفارشی |
| زمان تحویل: | 10-15 روز یا تأیید |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 5000 عدد در ماه |
|
اطلاعات تکمیلی |
|||
| قدرت: | 600 وات | شار نورانی: | 72000lm |
|---|---|---|---|
| اثربخشی: | 120lm/w | زاویه پرتو: | 15 درجه |
| دمای رنگ: | 5000K | تراشه LED: | Bridgelux SMD 3030 |
| رتبه بندی IP: | IP66 | مصالح مسکن: | آلومینیوم دایکاست ADC12 با پوشش درجه دریایی |
| دمای عملیاتی: | -40 درجه سانتی گراد تا +55 درجه سانتی گراد | گواهی: | IECEx Ex d IIC T6 Gb |
| طول عمر: | ≥50000 ساعت L70 | گارانتی: | 5 سال |
| برجسته کردن: | 600W LED explosion proof flood light,Helideck helicopter CAP 437 flood light,IECEx IP66 die-cast aluminum flood light |
||
توضیحات محصول

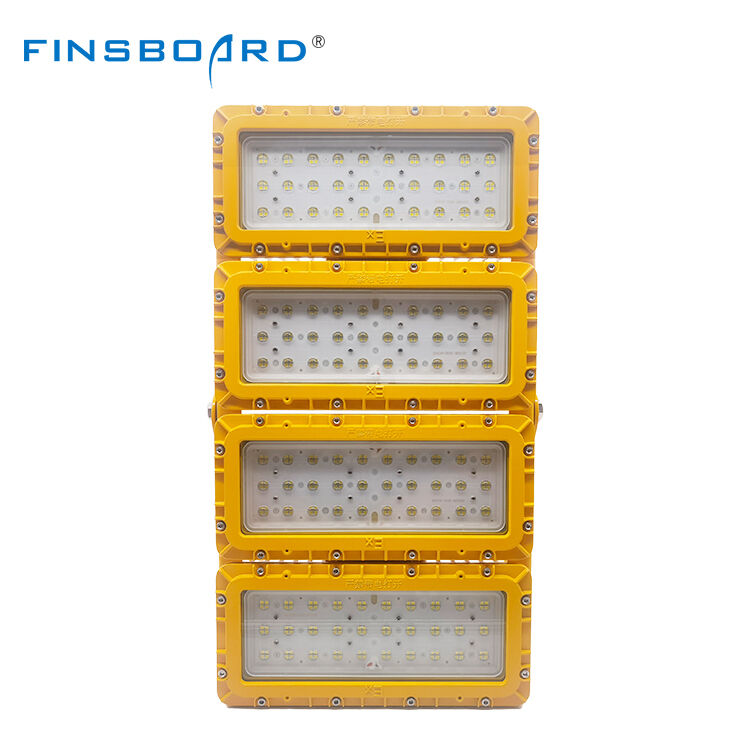

600W LED Explosion Proof Flood Light - 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66
The EPFL-600W-HLD is a 600W LED explosion proof flood light delivering 72000lm luminous flux with 120lm/W efficiency. IECEx Ex d IIC T6 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Marine-Grade Coating for demanding classified area applications.
Key Features
- 600W High-Efficiency Output - 72000lm total luminous flux at 120lm/W, replacing traditional HID fixtures with superior energy performance
- IECEx Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Helideck-Certified 15° Beam - Ultra-narrow beam engineered for offshore helideck perimeter illumination, compliant with CAP 437 and ICAO Annex 14 heliport lighting requirements
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 600W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Offshore helicopter decks, helideck perimeter lighting, FPSO helicopter landing areas compliant with CAP 437:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-600W-HLD |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Beam Angle | 15° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with Marine-Grade Coating |
| Operating Temperature | -40°C to +55°C |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-600W-HLD design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
